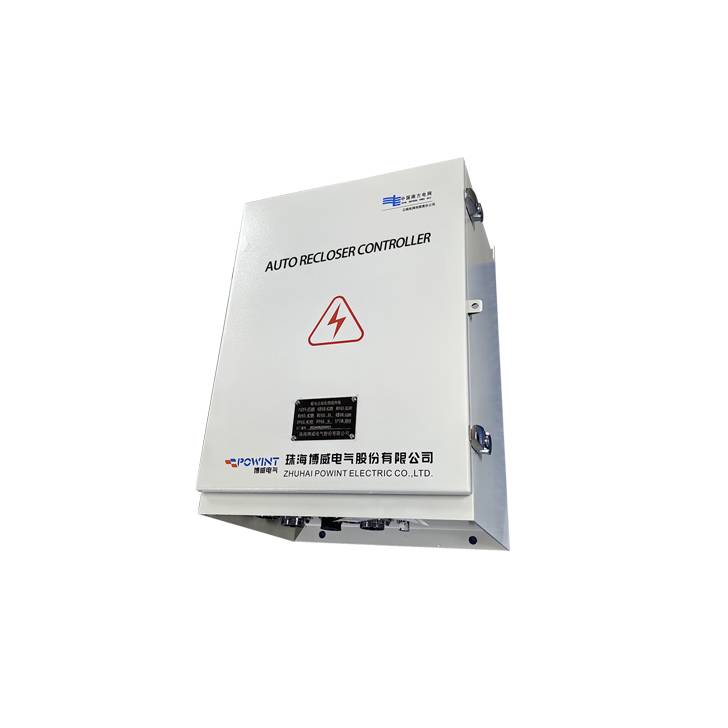

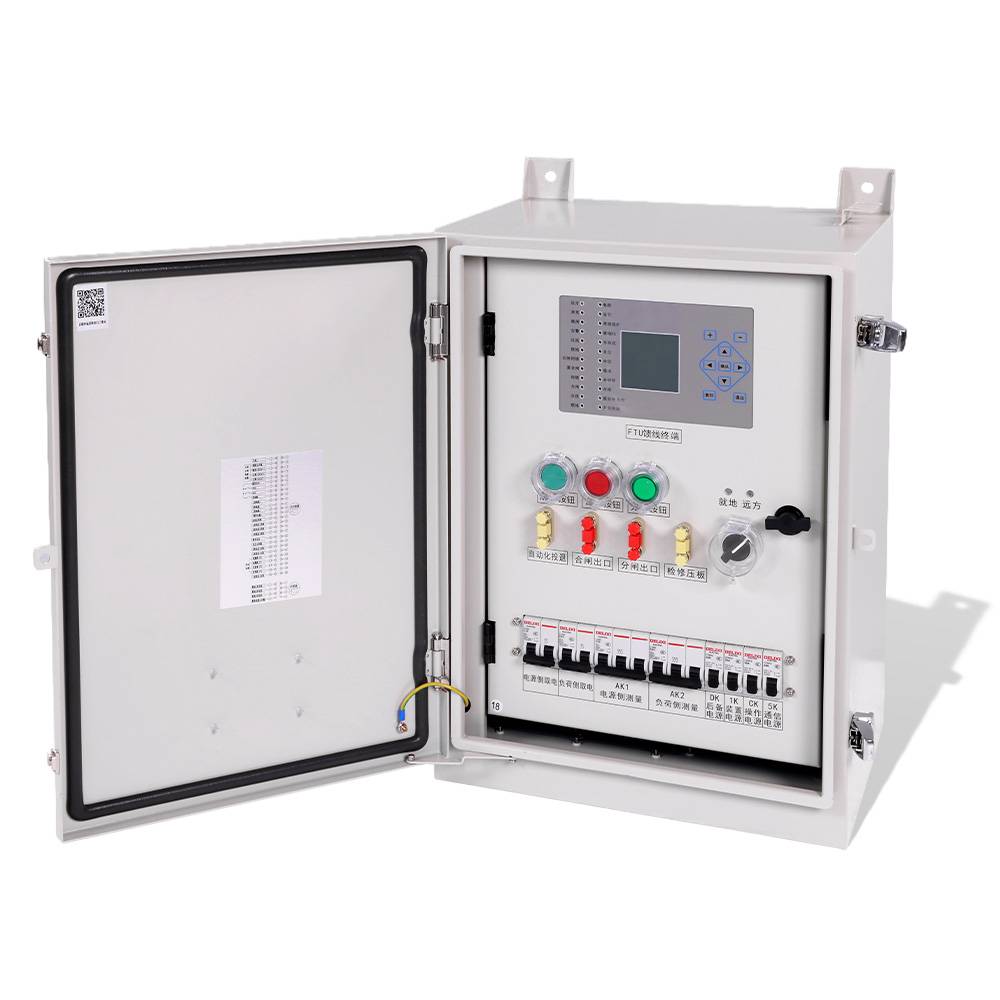

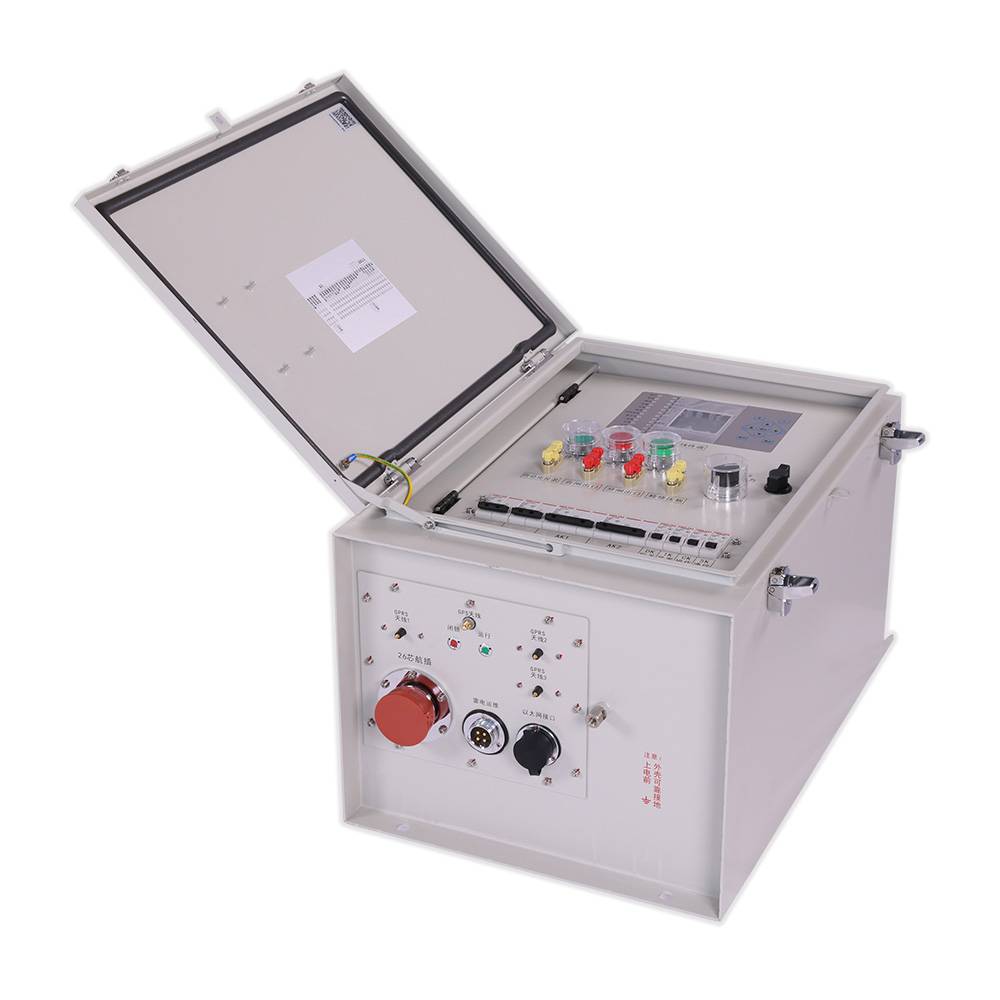

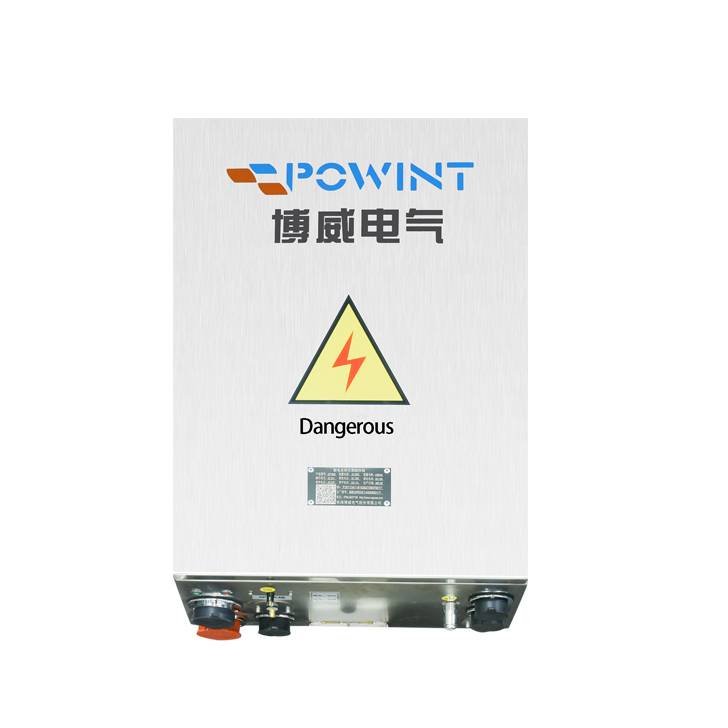

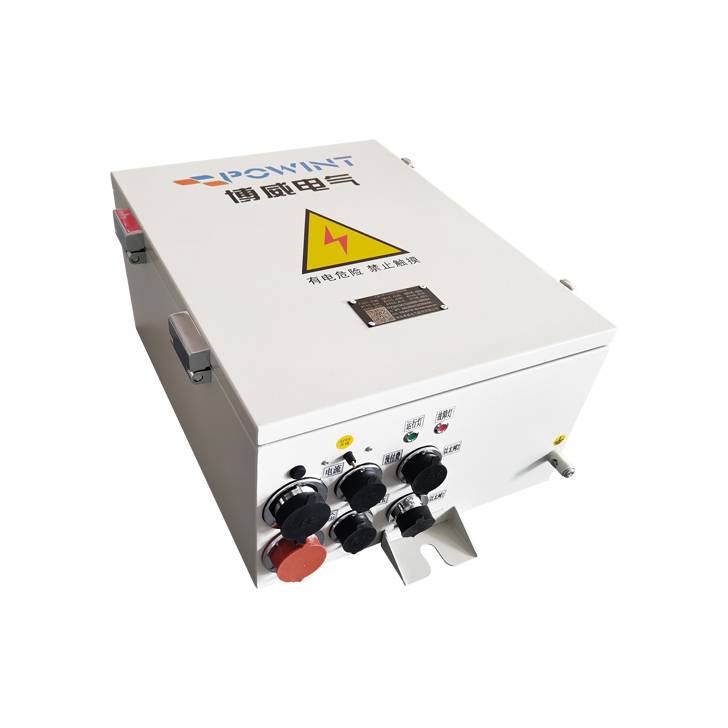

CFT-380
FTU Recloser Controls
Recloser controls are the front line of the distribution power system, often located on feeders or in distribution substations. Recloser controls supply the intelligence to the network and handle the network protection and in many cases even the RTU functionality.
Feeder Terminal Unit Voltage Distribution Automation
The CFT-380 feeder protection can be used for protection and automation of medium voltage distribution feeders with grounded or low resistance grounded, isolated, or compensated neutral point.
CFT-380 multifunctional FTU offer a comprehensive solution for protecting and controlling distribution reclosers or sectionalizers.
Besides the main protection functions, they include monitoring and operation features as well as logic programming, and events and fault reporting providing comprehensive switchgear (circuit breaker, recloser or LBS) management local and remote capabilities.
CFT-380 is a cost-effective solution for protection and control systems for which IEC 61850 standard compliance is required, including access in other protocols and web services as well.
Advanced Features for Feeder Automation and Fault Management
This device is specifically designed to support feeder automation applications, enabling efficient fault isolation and service recovery in power distribution systems. Its robust design and versatile features make it ideal for harsh environments.
Key Features and Benefits
Extreme Durability: Operates reliably in an extended temperature range from -50 °C to 85 °C, ensuring performance in challenging conditions.
Versatile Communication: Compatible with multiple communication technologies, including radio for seamless feeder automation.
Integrated GPS Module: Provides accurate time synchronization for enhanced operational efficiency.
Web-Based HMI: Enables complete remote control of the device via an intuitive web interface.
Remote Management: Supports full remote access for firmware updates, parameter adjustments, and upgrades.
Customizable Functionality: Includes 9 programmable function keys and an easy-to-read 6-line display for enhanced usability.
Integrated Networking: Features a built-in switch for low-cost and redundant optical ring configurations, allowing direct device-to-device connectivity.
Redundancy Protocols: Implements RSTP, PRP, and HSR for maximum system availability and reliability.
Enhanced Capabilities
Current Jump Detection: Advanced monitoring for improved fault identification.
Extended CFC: Enhanced custom function chart capabilities for better logic configuration.
24 km Single-Mode Interface: Ensures long-distance communication with minimal signal loss.
Flexible Protocol Support: Parallel operation of multiple communication protocols, including IEC 61850 GOOSE for relay-to-relay communication.
Low Power Inputs: Supports low-power CTs and VTs in compliance with IEC 61869-6 standards.
Secondary Transformer Settings: Adjustable 1 A / 5 A values via DIGSI software.
User-Friendly Design
Compact and Durable: Encased in a robust stainless steel housing for long-term use.
Battery Accessibility: Features a side-accessible buffer battery for quick and easy replacement.
USB Front Port: Simplifies device configuration and diagnostics.
Advanced Synchronization and Security
Time Synchronization: Achieves millisecond accuracy via SNTP over Ethernet.
High Availability: Supports redundant communication protocols for critical applications.
Control functions/programmable logic
Commands for the control of recloser, disconnect switches (isolators/isolating switches)
Control through keyboard, binary inputs, DIGSI 4 or SCADA system
Monitoring functions
Operational measured values V, I, F
Energy metering values Wp,Wq
Minimum and maximum values
Circuit-breaker wear monitoring
Fuse failure monitor
8 oscillographic fault records
Trip circuit supervision
Communication interfaces
Hardware
Ethernet electrical and optical (miltimode or single-mode)
IEC 61850 Edition 1 and 2
DNP3 TCP
IEC 60870-5-101
IEC 60870-5-104
Ethernet redundancy protocols RSTP, PRP and HSR
USB front interface for DIGSI 4
Hardware
4 current transformers
1/4 voltage transformers
12 binary inputs
8 binary outputs
1 life contact
Pluggable current and voltage terminal blocks
Connection option for low-power current and voltage transformers
