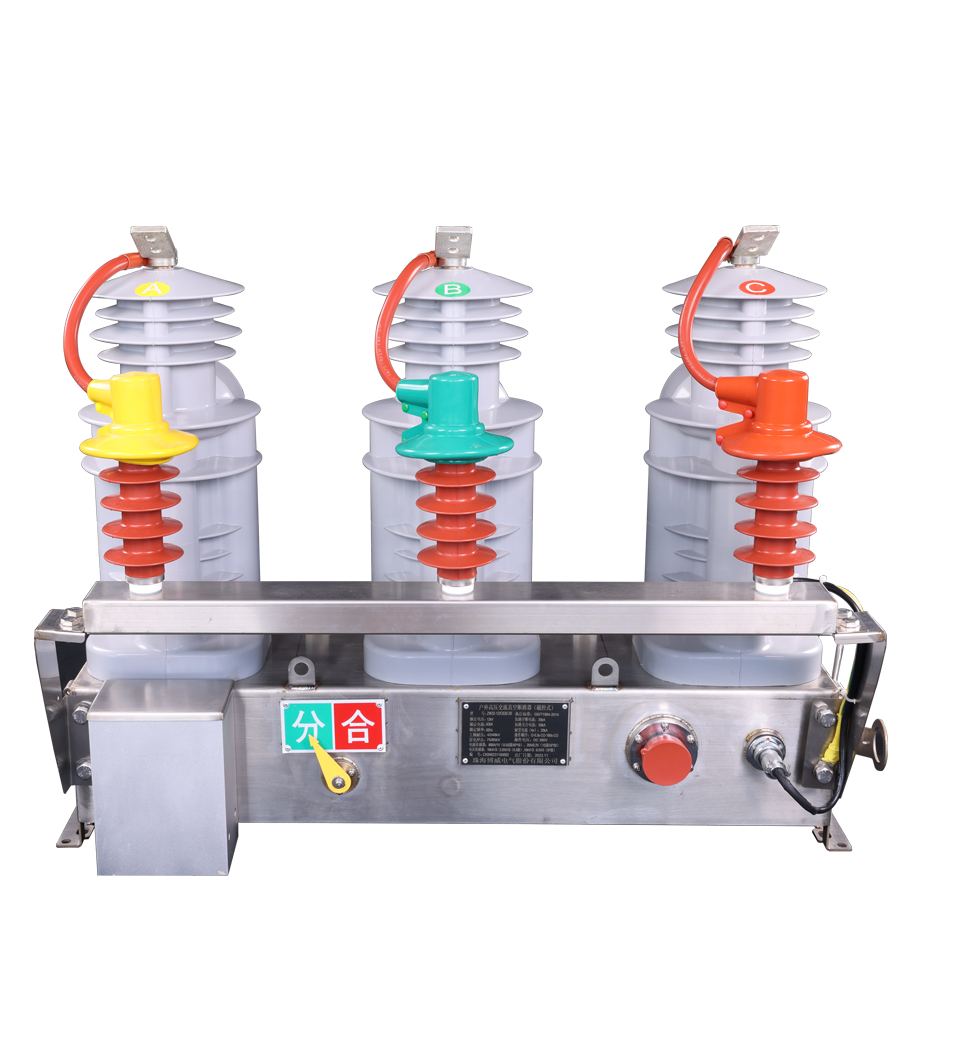

- Auto Recloser -
ZW32-12/630-20
10kV to 38kV Auto Recloser
Three phase reclosers up to 38 kV, 16 kA and 1250 A for outdoor pole mount or substation installation.
Reclosers are predominantly located on the distribution feeder, though as the continuous and interrupting current ratings increase
POWINT ELECTRIC, an ISO 9001 certified company, offers magnetic actuator outdoor, three-pole Vacuum Auto Reclosers

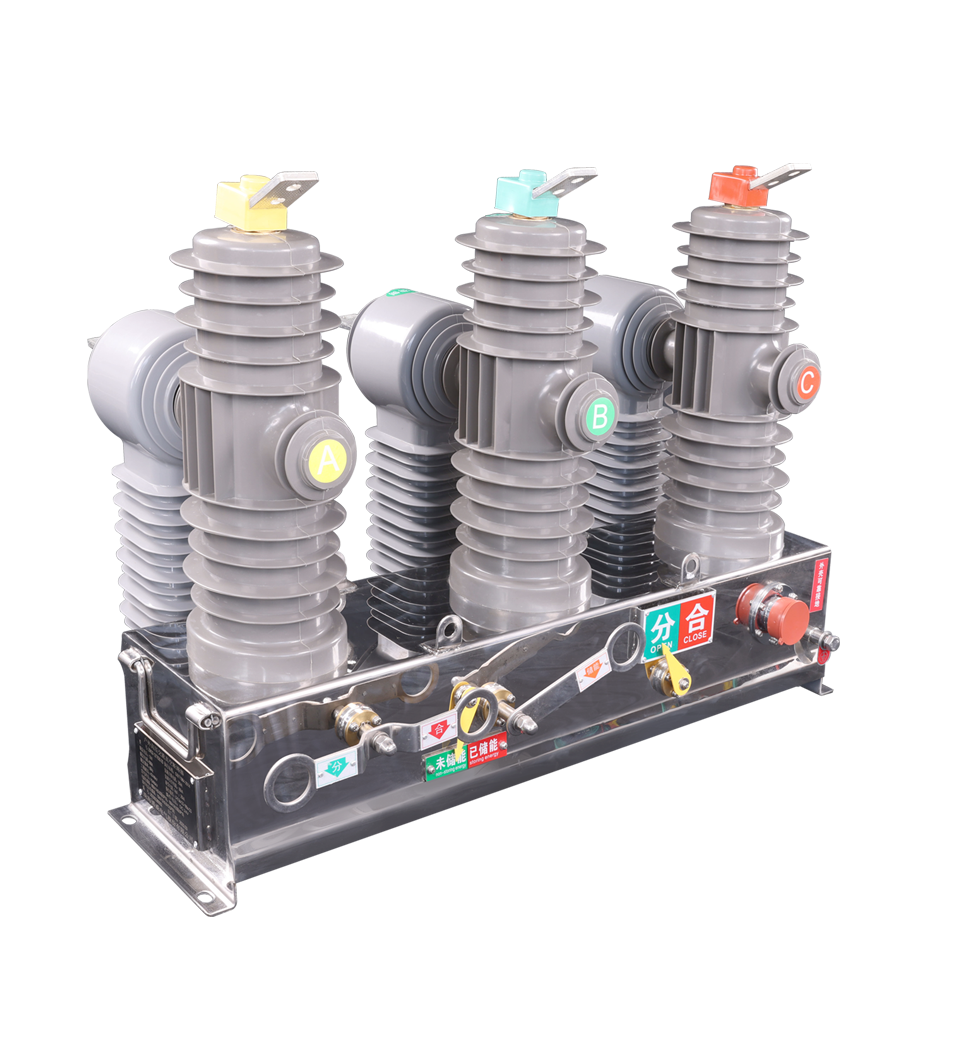

- Auto Recloser -
ZW32-12
Permanent Magnet Mechanism
IP65 Ingress Protection level, integrated with current and voltage sensor. The products is widely used in the distribution systems of urban grids.
Three Phase Pole-Mounted Auto Recloser, Electro magnetic, Electronic, Digital
IEC62271-111 and ANSI C37.60 standard complied

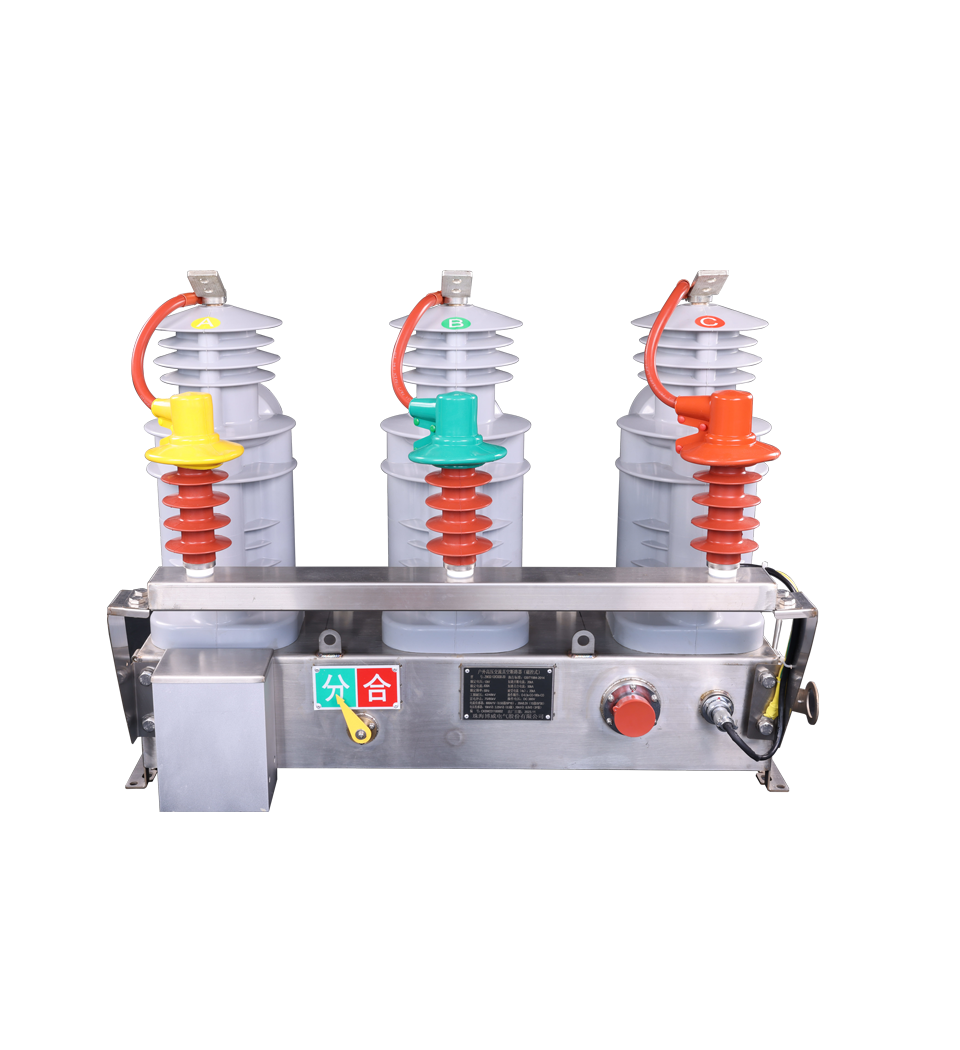

- Auto Recloser -
ZW32-12/630-20
Available in 12kV-38kV Voltage Ratings
• 3 stage Overcurrent Protection (Directional/Non- Directional)
• Fast & Delayed Trip Curves for Phase Fault/EarthFault
• 50 types of Trip Curves (IEC, ANSI, Recloser Curves, Customized Curves)
Definite Time Element
• Negative Sequence Overcurrent Protection
• Sensitive Earthfault (SEF) Protection
Broken Conductor Protection
• Check Synchronizing Element
• Auto Reclosing (5 shots)
• 4 setting groups

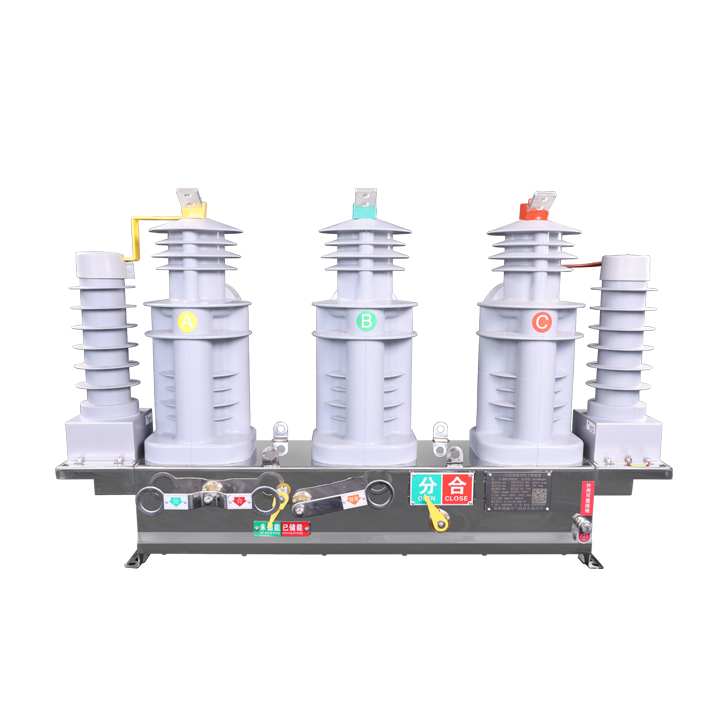

- Auto Recloser-
ZW32-12/630-20
SCADA: DNP 3.0, IEC 60870-5-101, IEC 60870-5-104
Over 20,000 event records
Waveform Record
Fault Recorder (upto 4 faults)
Maximum Demand–current
Maximum Demand–power
Status Indications
• Recloser Status: ON/OFF
• Control Position: Local/Remote
• Fault Indication (R, Y, B, N, SEF, Directional)
• Synchronization Fail
• Hot Line
• Inrush Detected
• Mechanical Lock-out
• Loss of AC Aux. Power
